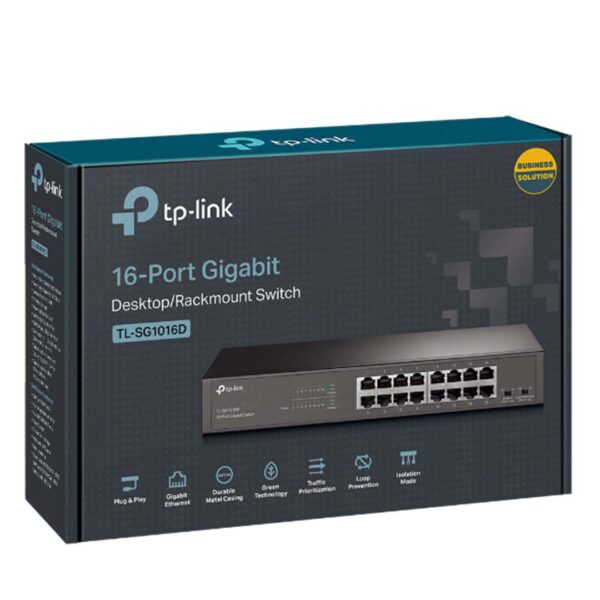

Tp-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
Tp-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
3. Plug-and-Play Operation
- Zero Configuration Required – Auto-negotiates speed and duplex settings.
- Auto-MDI/MDIX – Works with any Ethernet cable (straight-through or crossover).
- IEEE 802.3x Flow Control – Prevents data loss during high traffic.
4. Energy Efficiency
- IEEE 802.3az (Energy-Efficient Ethernet) – Reduces power consumption during low activity.
- Auto Power-Down on Unused Ports – Saves energy when devices are disconnected.
Description
Tp-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
The TP-Link TL-SG1016D is a 16-port unmanaged Gigabit Ethernet switch designed for small to medium businesses, offices, and home networks requiring high-speed wired connectivity. With plug-and-play operation, silent cooling, and flexible mounting, it provides reliable Gigabit (1000Mbps) networking for bandwidth-intensive applications.
Key Features & Specifications
1. Network Performance
- Ports: 16 × Gigabit Ethernet (10/100/1000Mbps) ports
- Auto-negotiation & Auto-MDI/MDIX (no crossover cables needed)
- Switching Capacity: 32Gbps (non-blocking)
- Forwarding Rate: 23.8Mpps (million packets per second)
- MAC Address Table: 8K entries for efficient traffic handling
2. Design & Build
- Compact Metal Housing – Durable and dissipates heat effectively.
- Flexible Installation:
- Desktop placement (standalone use)
- 19-inch rack-mountable (brackets included)
- Fanless Design – Silent operation, ideal for noise-sensitive environments.
3. Plug-and-Play Operation
- Zero Configuration Required – Auto-negotiates speed and duplex settings.
- Auto-MDI/MDIX – Works with any Ethernet cable (straight-through or crossover).
- IEEE 802.3x Flow Control – Prevents data loss during high traffic.
4. Energy Efficiency
- IEEE 802.3az (Energy-Efficient Ethernet) – Reduces power consumption during low activity.
- Auto Power-Down on Unused Ports – Saves energy when devices are disconnected.
5. Reliability & Compatibility
- Works with all Gigabit-enabled devices (PCs, NAS, gaming consoles, IP cameras).
- Backward compatible with 10Mbps and 100Mbps devices.
- Stable performance for file transfers, streaming, and VoIP.
Technical Specifications
| Category | Details |
|---|---|
| Model | TP-Link TL-SG1016D |
| Ports | 16 × Gigabit (10/100/1000Mbps) |
| Switching Capacity | 32Gbps |
| Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K entries |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | ≤ 13.1W (Max) |
| Dimensions | 280 × 180 × 44 mm (L × W × H) |
| Weight | 2.6 kg |
| Mounting | Desktop or 19″ rackmount (ears included) |
| Certifications | CE, FCC, RoHS |
Use Cases & Applications
✔ Ideal For:
- Small/medium offices needing high-speed wired connections.
- Home labs & gaming setups (low-latency networking).
- Surveillance systems (IP cameras + NVRs).
- NAS & media servers (fast file transfers).
❌ Not Recommended For:
- Advanced networking needs (VLANs, QoS, or management features).
- Data centers (no stacking or 10G uplinks).
Pros & Cons
✔ Advantages:
✅ Affordable 16-port Gigabit switch
✅ Fanless & silent operation
✅ Rackmountable for professional setups
✅ Energy-efficient (802.3az compliant)
✅ Plug-and-play installation
❌ Limitations:
❌ No VLAN, QoS, or management features
❌ No SFP slots for fiber uplinks
Comparison with Similar Switches
| Feature | TP-Link TL-SG1016D | Netgear GS116 | D-Link DGS-1016D |
|---|---|---|---|
| Ports | 16 × Gigabit | 16 × Gigabit | 16 × Gigabit |
| Switching Capacity | 32Gbps | 32Gbps | 32Gbps |
| Rackmountable | ✔ Yes | ✔ Yes | ✔ Yes |
| Energy Efficient | ✔ Yes | ✔ Yes | ✔ Yes |
| Price | Budget-friendly | Mid-range | Budget-friendly |
Final Verdict
The TL-SG1016D is a cost-effective, unmanaged Gigabit switch perfect for expanding wired networks without complexity. Its silent operation, rack-mount flexibility, and energy efficiency make it ideal for SMBs, home offices, and surveillance systems.
Upgrade Options:
- For managed features, consider TP-Link TL-SG1016PE (PoE+).
- For 10G uplinks, see TP-Link TL-SX3016F.
